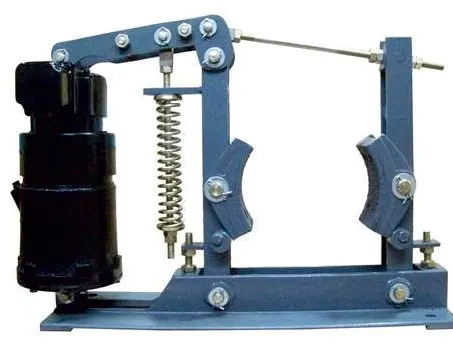

Electro Hydraulic Thruster Brake
Our mill duty Thruster Brakes are suitable for 440 Volts, 3 Phase A.C. supply for a wide range of drum sizes, from 100mm to 600 mm dia. Higher sizes can also be supplied against specific requirements. The brake is applied by the tension of the compressed springs mounted vertically between the thruster and brake lever. The thruster rods are connected with the brake by means of an angle lever As the piston travels upwards the angle lever tums, pushes the brake rod and compresses the brake spring Simultaneously, the brake lever on the other side of the wheel (Brake Drum) is retracted.
Our crane brakes are designed to deliver robust and reliable performance for EOT cranes, overhead cranes, gantry cranes, and other industrial lifting equipment. Built to meet the highest safety standards, our EOT crane brakes and overhead crane brakes ensure smooth and controlled operations, even under heavy loads.We provide advanced solutions such as electromagnetic brake for crane, crane magnetic disc brake, and brake crane systems, all engineered for excellent wear resistance, quick response, and minimal maintenance. Our range also includes thruster brakes, hydraulic thruster brakes, and heavy-duty options like the 18 kg thruster and 34 kg thruster, ensuring compatibility with diverse industrial environments.
Trusted for durability and safety, our crane brake solutions enhance efficiency, reduce downtime, and guarantee reliable operation for modern crane applications.
Trusted for durability and safety, our crane brake solutions enhance efficiency, reduce downtime, and guarantee reliable operation for modern crane applications.
| Brake Model | Brake Drum Dia mm | Brake Tourqe | Brake Model | Brake Drum He mm | Brake Tourqe | ||
|---|---|---|---|---|---|---|---|
| kg-m | N-m | kg-m | N-m | ||||
| MDT-100-18 | 100 | 6 | 60 | MDT-400-46 | 400 | 90 | 900 |
| MDT-150-18 | 150 | 9 | 90 | MDT-400-68 | 400 | 110 | 1100 |
| MDT-160-18 | 160 | 9 | 90 | MDT-500-48 | 500 | 190 | 1900 |
| MDT-200-18 | 200 | 20 | 200 | MDT-500-68 | 500 | 290 | 2900 |
| MDT-250-18 | 250 | 35 | 350 | MDT-500-114 | 500 | 485 | 4580 |
| MDT-250-34 | 250 | 42 | 420 | MDT-600-68 | 600 | 350 | 3500 |
| MDT-300-34 | 300 | 62 | 620 | MDT-600-114 | 600 | 580 | 5800 |
Electro Hydraulic Thrusters
Electro-Hydraulic Thruster A compact 60watt, 2800 rpm. 415v/50Hz/3-ph, non-ventilated motor is directly mounted on the top of a moving aluminum piston. A cast iron tank containing the brake fluid actcs as the cylinder, the piston separates the cylinder into high pressure and low pressure chambers. The bi directional impeller is mounted directly on the motor shaft. The upper clevis in integral with the top and shield of the motor and the lower clevis is on the bottom of the tank cover.
| Model No. | Rated Thrust (kg) | Output Stroke (S) | Input Watts |
|---|---|---|---|
| EHT-18K | 18 | 51 | 90 |
| EHT-34K | 34 | 51 | 150 |
| EHT-45K | 45 | 51 | 180 |
| EHT-68K | 68 | 76 | 200 |
| EHT-113K | 113 | 76 | 250 |
| EHT-225K | 225 | 127 | 420 |
| EHT-295K | 295 | 127 | 580 |
Brake Shoe Liner
CMK Manufacturing a wide range of brake linings, which is of excellent quality. These are made of soft but tough heat resistant material with a high coefficient of dynamic friction we offer rubber brake linings, asbestos brake linings. automotive brake linings, which are made using a unique blend of ingredients such as asbestos, friction dust, resins etc. These products are used in industrial brake application.
AC Failsafe Electromagnetic Disc Brake
Very compact and modern in design, Foundation is not necessary as they are directly mounted on non-driving end shaft of the motor. It consist of liner prices (Brake Disc) with square hole at the center One corresponding piece of square hub is supplied with the brake. This hub is keyed to the motor shaft and the finer plate is free on this hut Normally Liner plate is gripped between two discs with the help of spring pressure they work on 230 / 415 VAC When the current is supplied to the brake, one disc is attracted by electromagnet against spring pressure and the liner plate os released. Thus the brake is ‘off’. Once the brake is set it dose not required adjustment or maintenance When the liner plates wears with the use then only air gap is to be maintained periodically An arrangement to release the brake manually could be provided on request
| Range | Tech.Data | |||
|---|---|---|---|---|
| T Kg. m | VA | Sq. Hub M | N | |
| EMD-125 | 0.2 | 80 | 28.0X28.0 | 25 |
| EMD-150 | 1.1 | 80 | 38.1X38.1 | 25 |
| EMD-150X | 2.2 | 80 | 38.1X38.1 | 45 |
| EMD-190 | 2.5 | 165 | 38.1X38.1 | 28 |
| EMD-190X | 4.5 | 165 | 38.1X38.1 | 45 |
| EMD-235 | 4.0 | 205 | 50X50 | 28 |
| EMD-235X | 6.0 | 205 | 50X50 | 45 |
| EMD-290 | 5.5 | 275 | 50X50 | 30 |
| EMD-290X | 11 | 275 | 60X60 | 45 |
| EMD-290XX | 14 | 275 | 60X60 | 60 |
Electromagnetic Dc Brake
Our DC Brake has a name as absolute reliable brake for use in almost every application. As standard, this brake is available in 10 different sizes for static or dynamic braking with re- settable air gap design. Due to several variations and options, this brake series is preferred by motor manufactures for universal use.
Benefits:
- Manual hand release
- Micro switch or inductive sensor to
- Monitor brake function or wear limit
- Friction plate or adopter flange
- Taped bores for tacho maunting
- Dust protection ring
- Temperature feeler
- Rest period heating
- Low noise version
Ac Solenoid Brake
AC Solenoid Brake that are suitable for AC supply up to 440 volts, and are available for a wide range of drum sizes from 100mm to 380mm Dia. We stand in the midst of prominent electromagnetic brakes suppliers based in India
AC Brakes
- 4″ Dia / 5.5″ Dia / 7″ Dia
Solenoids
- Type: SLB – 25 mm stroke length
- Type: SLD – 31.4 mm stroke length
Features
- Class F- insulation of the coil
- Continuous & intermittent duty
- Long life & ease of maintenance
- Ideally suited for applications such as Cranes, Hoists, Machines, Valves,Conveyers
Ac Solenoid Brake
| Type of Brake | Wheel Inch | Max. Torque | Duty | ||
|---|---|---|---|---|---|
| Inch | MM | Lb. ft | Nm | ||
| S-4 | 4 | 101.6 | 10 | 13.6 | Continuos |
| S-5 | 5.5 | 139.7 | 25 35 | 34.0 48.0 | Continuos intermittent |
| S-7 | 7 | 177.8 | 50 75 | 68.0 102.0 | Continuos intermittent |
We’ve more than 3,000+ Clients
Faqs
Frequency Asked Questions
What is a crane brake and why is it important?
A crane brake is a safety component that controls the motion of EOT cranes, overhead cranes, gantry cranes, and industrial lifting equipment. It ensures smooth stopping, prevents accidents, and maintains safe, reliable operations under heavy loads.
What types of crane brakes do you offer?
How does an electromagnetic brake for crane work?
What are thruster brakes in cranes?
What is the difference between hydraulic thruster brakes and electromagnetic brakes?
Which crane brake is best for heavy-duty applications?
Are your crane brakes compliant with international safety standards?
What are the benefits of using your EOT and overhead crane brakes?
Do you supply spare parts for crane brakes?
In which industries are your crane brakes used?
