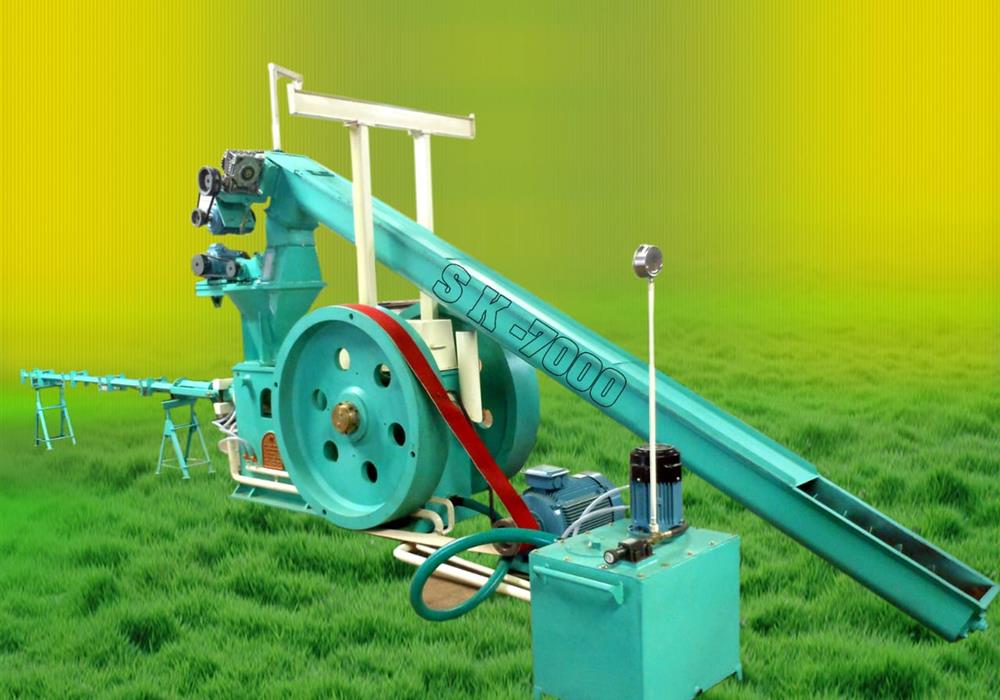

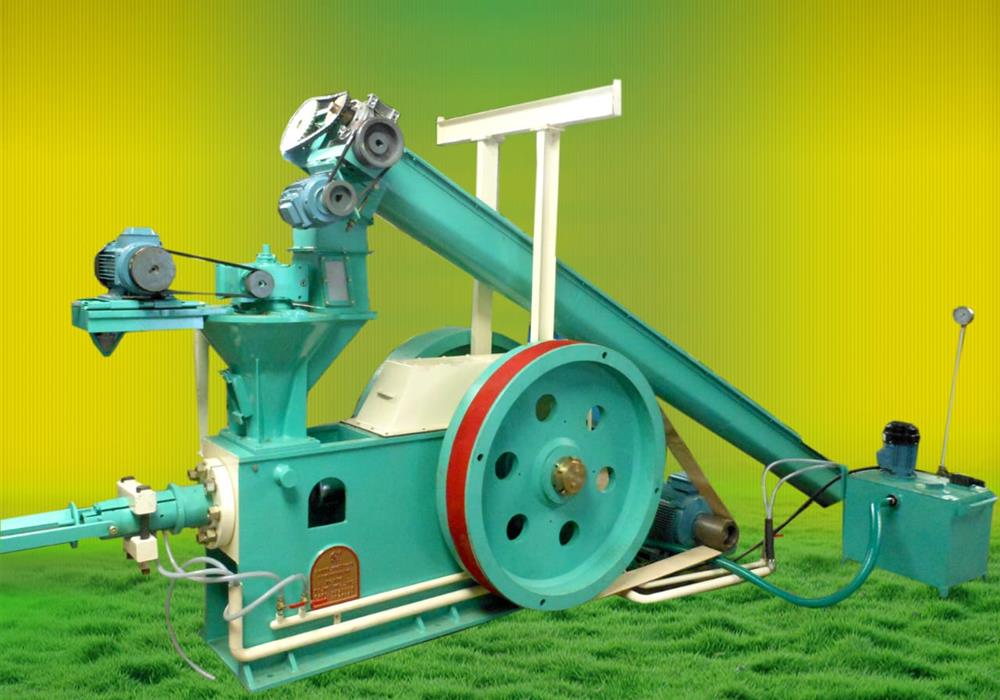

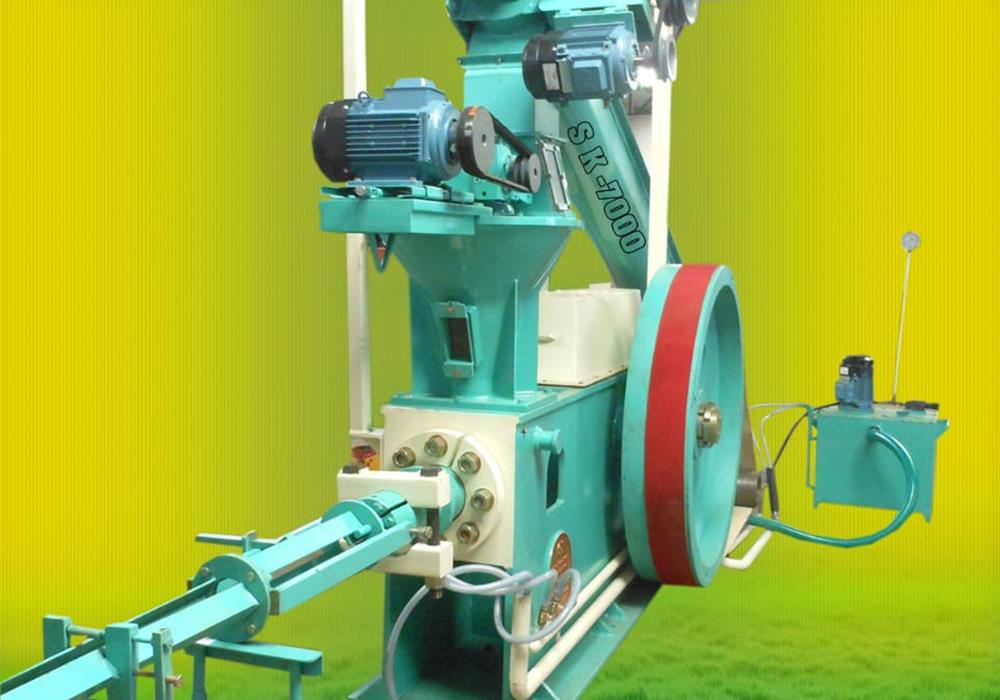

Briquetting Plant SK 7000

• Briquettes Diameter : 70mm
• Briquettes Length : 100mm
• Production Capacity: 1000 Kg/hr.
• Raw-material size: 10mm Maximum
• Moisture content of Raw Material: Max. 10%
• Finished Product Shape: Cylindrical
• Process Cost/MT [Approx) : Rs: 550/- [In India]

Specifications of applicable Raw Material

• Size of Raw Material : 10mm
  If bigger size of Raw Material, Hammer Mill required.
• Moisture contain : Max. 10 %.
  If Moisture contain is higher than Dryer is required.

Land Area in Feet(Machine Room) : 20 X 30′ X 12′ (Width X Length X Height) Electricity/Power

• Required Power Connection: 50 hp(III phase).
• Practical used Amp. Load: 60-70. Amp(Approx)
• Power Consumption: 25-35 Unit/Tone.

Labor

• Trained & Skilled operator: One/Shift
• Unskilled labor: Six/shift

Production Data with Various Raw Materials (Approx)

• Sugarcane Baggasse: 400-500 Kg./hr.
• Groundnut shell: 800-900 Kg./hr.
• Saw Dust/Wood Chips/coconut Shell: 900-1000 Kg./hr.

Unit Consisting:

• Bio-mass Briquetting press with
• 40 HP Electric Motor with nylon belt
• Complete lubrication system with Filter & 2 HP Electric Motor.
• Feeding cyclone, Gearbox, 3 HP Electric motor
• Screw Conveyor-15 feet long with Gearbox 2 HP Motor
• Cooling lines 30 feet with stand.
• Complete operating panel board.
• Foundation channel for main Motor.
• Foundation bolts.

All above Elec. Motors with 1440 RPM operating AC Power supply shall be 415V, 3Phase, 50Hz.
